Began wiring up my lights today.
I bought an auxillary fuse box from Mike at 4x4rockshop.com so I wouldn't end up having 5 extra wires running directly to the battery terminal. Also keeps me from having to use beaucoup in-line fuses.
I took my time to try to keep the wires all together. I re-ran my fogs to the new box too. Everything powerwise, fuse, relay, etc is ready, I just have to finish the wires to the lights and switches. I'll be running the power to the lights along the frame rail then to the rear pillar, up and exiting above the hatch to the rack using the plastic sheathing to reach the lights.

Nice & clean! makes me want to re-do my rats nest of wiring

Yay! Can't wait to see how bright they all are!

ALMOST inspired me to do my lights. :red|

Looks awesome, Mike.

You and Paul want to come to my house and have a light wiring contest? :)=) I have a sample vehicle you can compete on!!!

alanzona wrote:

You and Paul want to come to my house and have a light wiring contest? :)=) I have a sample vehicle you can compete on!!!

Sure... whats the WORST that can happen??


8|

HAHAHA! That was my FIRST XJ. Now you see why I haven't wired up my lights yet! :red|

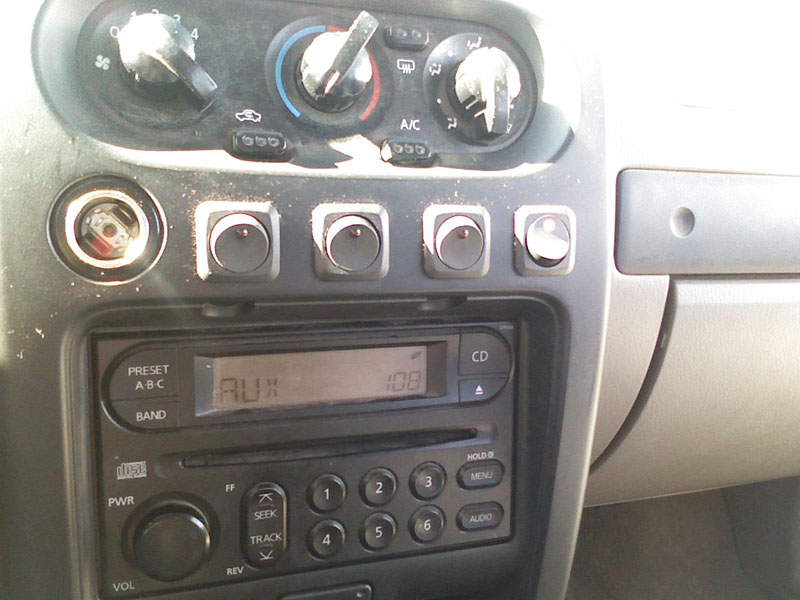

Got everything wired up on the lights. Ran the wires all the way down the frame and up at the rear hatch. All the switches are in too. They are all aftermarket but they look like they belong (Radio Shack part# 275-731 / $3.99).


I need a pic with them on at night, but me likey.
Lit it up out at the lake a couple wknds ago.

They work great! They look great too!

Nice.

Sc00by wrote:Sure... whats the WORST that can happen??


8|

Pooor jeep.:'(

defibvt wrote:Pooor jeep.:'(

thank you for calling it a Jeep. We don't usually get that around here. :((
